12V SLD lightbox power supply

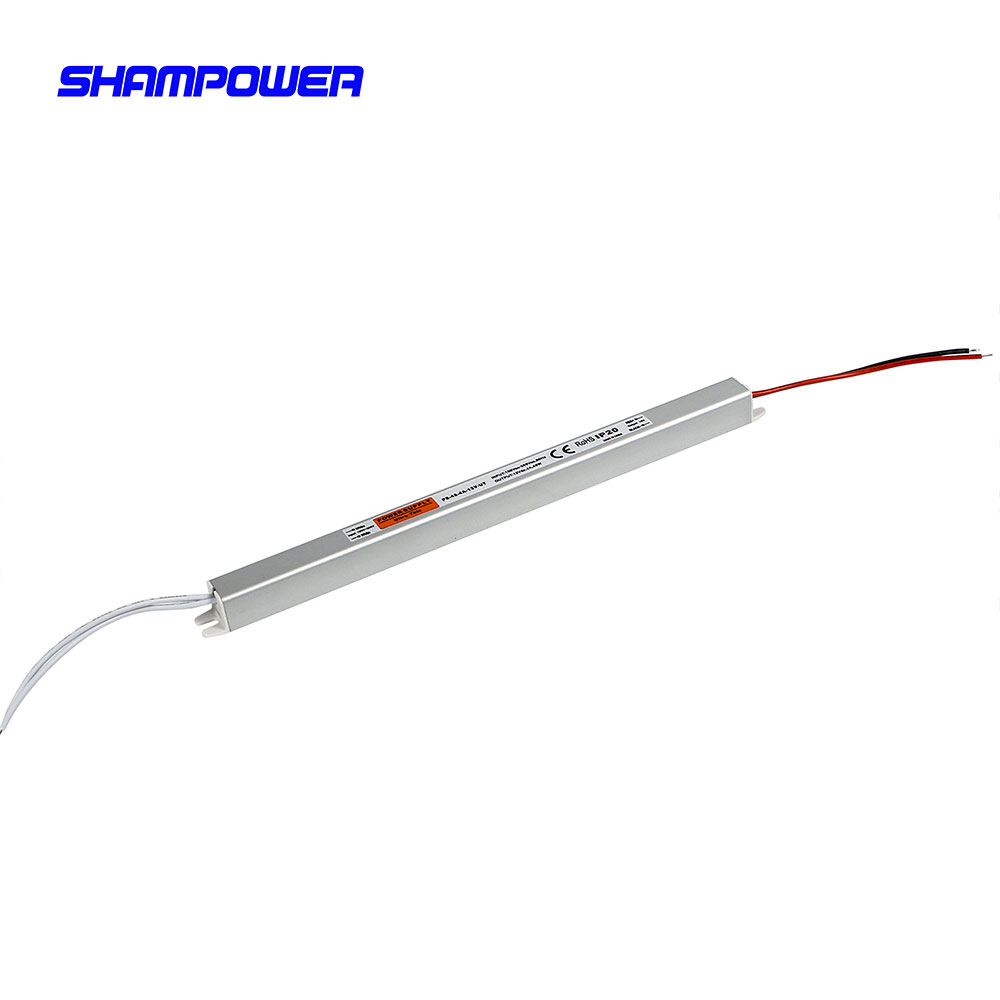

12V SLD lightbox power supply is a single-output slim type power supply with 18mm of low profile design. Adopting the full range of 90~264VAC input, the maximum current capacity of the SLD slim strip light box power supply is 8.5A.

In addition to the high efficiency of up to 90%, the SLD slim strip light box power supply can operate from -30°C to 70°C working temperature under air convection without a fan. The SLD slim strip light box driver has complete protection functions and is complied with international regulations such as CE / RoHS / FCC / ISO9001. The SLD light box power supply serves as a high-performance power supply solution for fabric light boxes, LED smart mirrors, linear Lightboxes, and various industrial applications.

Available Outputs:

• 18W, 24W, 36W, 48W, 60W, 72W, 100W

12V SLD Slim Strip Lightbox Power Supply Features:

1) Slim low profile, Thickness within 18mm

2) Fanless design

3) High-density double-sided fiberglass PCB with SMT process

4) Withstand 300VAC surge input for 5 seconds

5) -30°C to 70°C working temperature

6) Protections: Short circuit / Overload / Over Voltage / Over temperature

7) Operating altitude up to 5000 meters

8) Easy installation with reserved mounting holes

9) CE & RoHS & FCC & ISO9001 listed

10) 24-hour 100% full load burn-in test

11) Three years warranty

12) ODM & OEM supported

13) Fast delivery

12V SLD Slim Strip Lightbox Power Supply Specifications:

DC Output	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency: 90%
	AC Current: 0.86/115V 0.4A / 230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA / 240VAC
Protection	Over-load: 105%-150% hiccup mode, Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output, Auto-recovery
	Over-temp.: Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60°C (Refer to output load derating curve)
	Working Humidity: 20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60°C
	Storage Humidity: 10 ~ 95% RH
Safety	Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Safety	Safety standards: CE, RoHS, FCC, ISO9001, CCC

12V SLD Slim Strip Lightbox Power Supply Applications:

1) Industrial automation machinery

2) Industrial control system

3) Mechanical and electrical equipment

4) Electronic instruments, equipment, or apparatus

5) Household appliances

6) LED display application

7) Fabric light box

8) LED smart mirror

9) Linear Lightbox
