24V UHP lightbox power supply

24V UHP lightbox power supply is a single-output slim type power supply with 22mm of low profile design. Adopting the full range of 90~264VAC input, the maximum current capacity of the power supply is 16.7A.

In addition to the high efficiency of up to 90%, the 24V UHP lightbox LED driver can operate from -30°C to 70°C working temperature under air convection without a fan. The UHP lightbox driver has complete protection functions and is complied with international regulations such as CE / RoHS / FCC / ISO9001. The 24v UHP lightbox transformer serves as a high-performance power supply solution for various industrial applications.

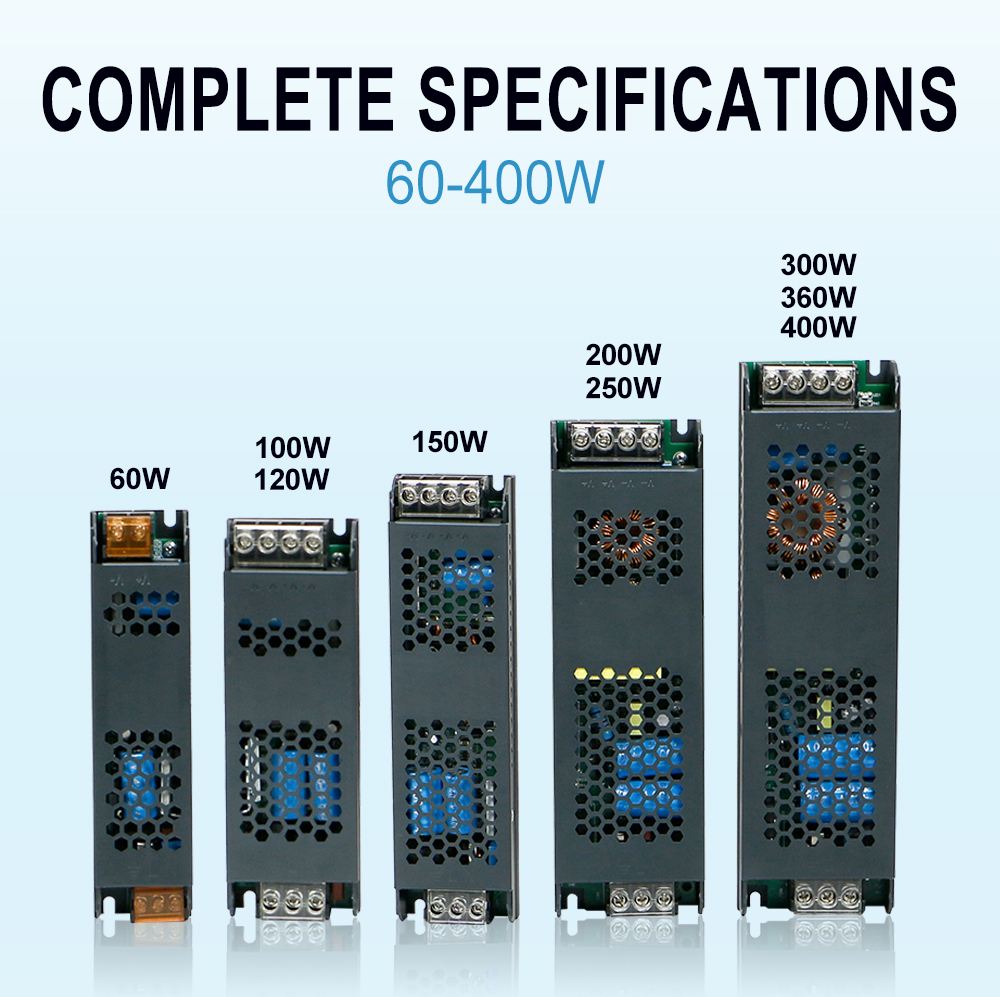

Available Outputs:

• 60W, 100W, 200W, 300W, 400W

24V UHP Lightbox Power Supply Features：

1) Slim low profile

2) Fanless design, 300W-400W convection

3) Withstand 300VAC surge input for 5 seconds

4) Build-in active PFC function

5) -30°C to 70°C working temperature

6) Protections: Short circuit / Overload / Over Voltage / Over temperature

7) Operating altitude up to 5000 meters

8) LED indicator for power on

9) CE & RoHS & FCC & ISO9001 listed

10) 24-hour 100% full load burn-in test

11) Five years warranty

24V UHP Lightbox Power Supply Specifications

DC Output	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency: 90%
	AC Current: 0.86/115V 0.4A / 230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA / 240VAC
Protection	Over-load: 105%-150% hiccup mode, Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output, Auto-recovery
	Over-temp.: Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60°C (Refer to output load derating curve)
	Working Humidity: 20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60°C
	Storage Humidity: 10 ~ 95% RH
Safety	Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Safety	Safety standards: CE, RoHS, FCC, ISO9001, CCC

24V UHP Lightbox Power Supply Applications:

1) Industrial automation machinery

2) Industrial control system

3) Mechanical and electrical equipment

4) Electronic instruments, equipment, or apparatus

5) Household appliances

6) LED display application

7) Power Source Equipment for PoE ( 55V model )
