18 Channel CCTV Power Supply

The SHAMPOWER 18 Fused Outputs CCTV Power Supply improves camera security and reliability.
Most CCTV cameras are powered by AC power, often plugging into a nearby outlet.

The SHAMPOWER CCTV power supply reduces the risk of accidental or deliberate tampering by securing energy supplies for several cameras in lockable housing.

Easy to install and maintain, The CCTV power supply can be wall-mounted anywhere, keeping cables and power safe and tidy.


LED indicators tell you if the cameras are receiving power, making troubleshooting issues easy.

A single power on / off switch allows you to restart or shut down the system as needed and an internal PTC fuse turns it off when the current reaches 1.1A.


SHAMPOWER CCTV power supply boxes are designed to work with most commercial and in-house video surveillance systems available worldwide. We have models that can handle up to 4, 8, 9, 16, or 18 channels, providing up to 1.11A per channel. The box is powered by mains socket standards of different countries and a mains cable is included.

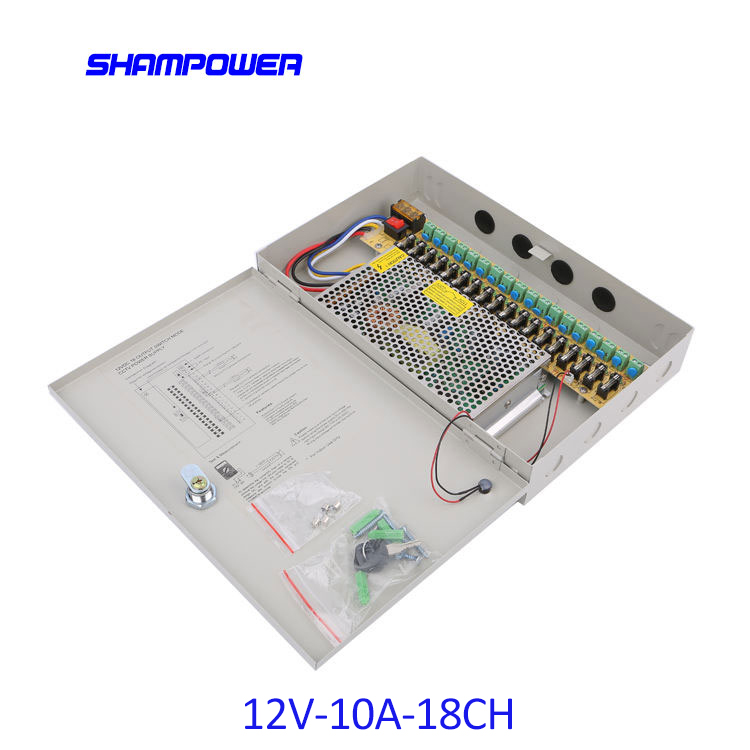

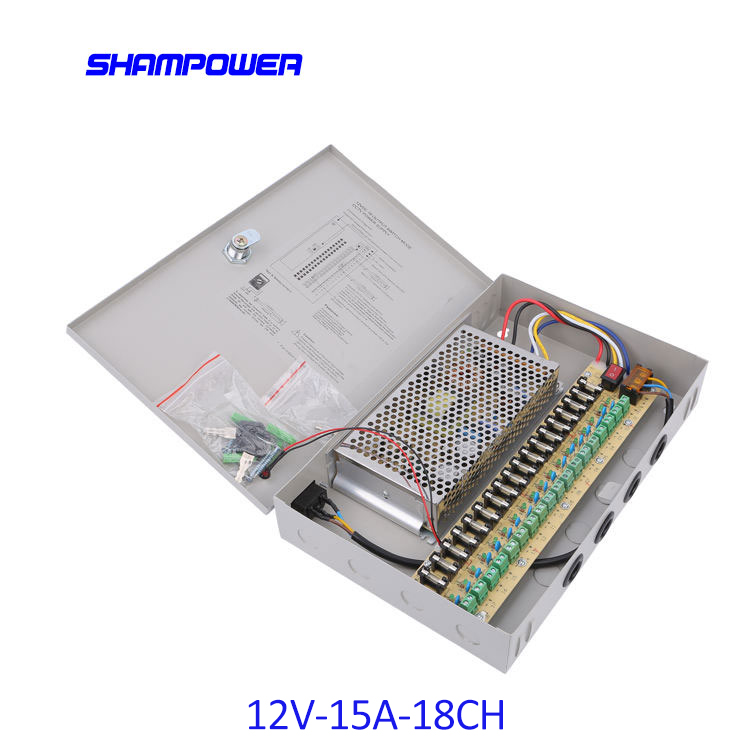

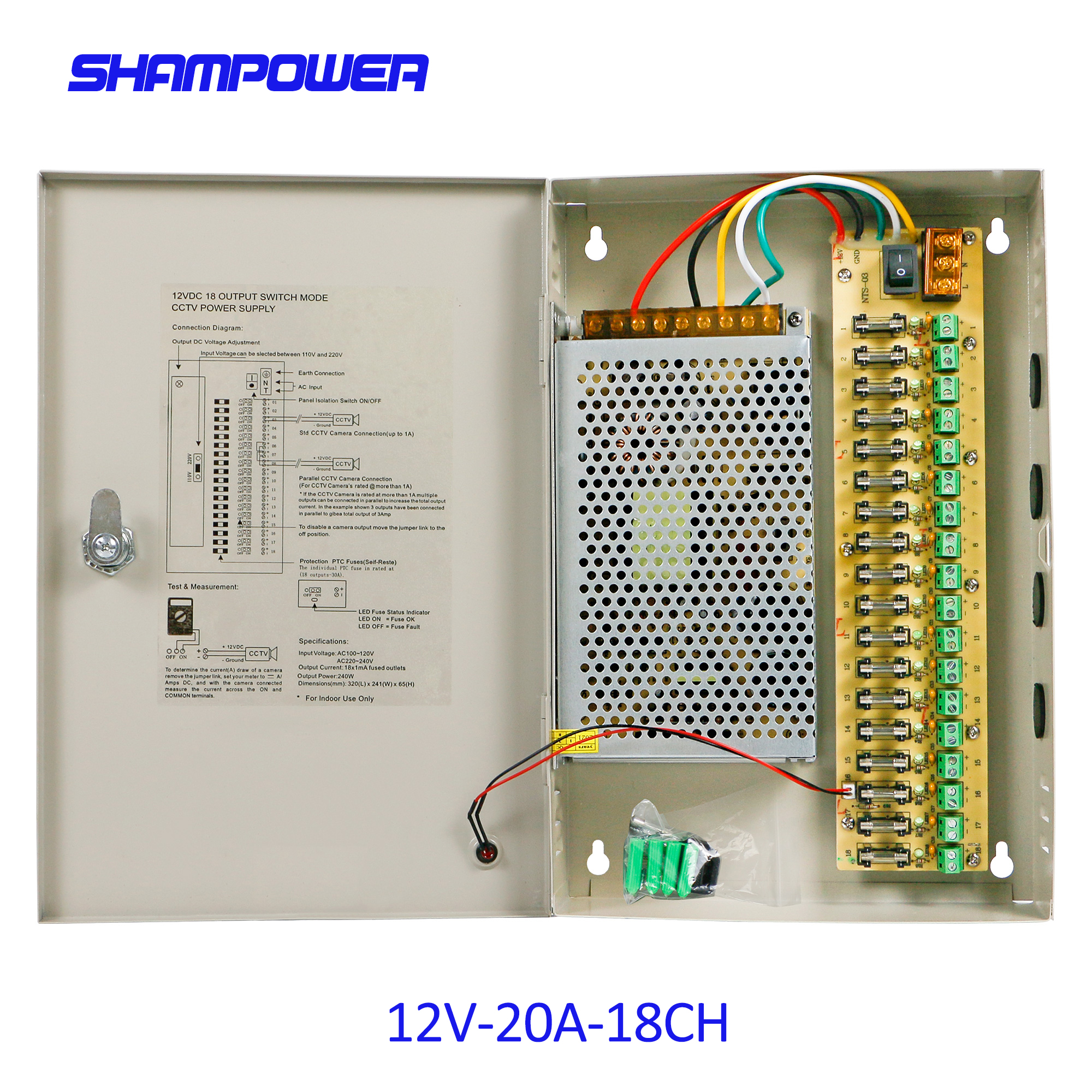

18 Channel CCTV Power Supply Available Outputs:

10A@12VDC

15A@12VDC

20A@12VDC

30A@12VDC

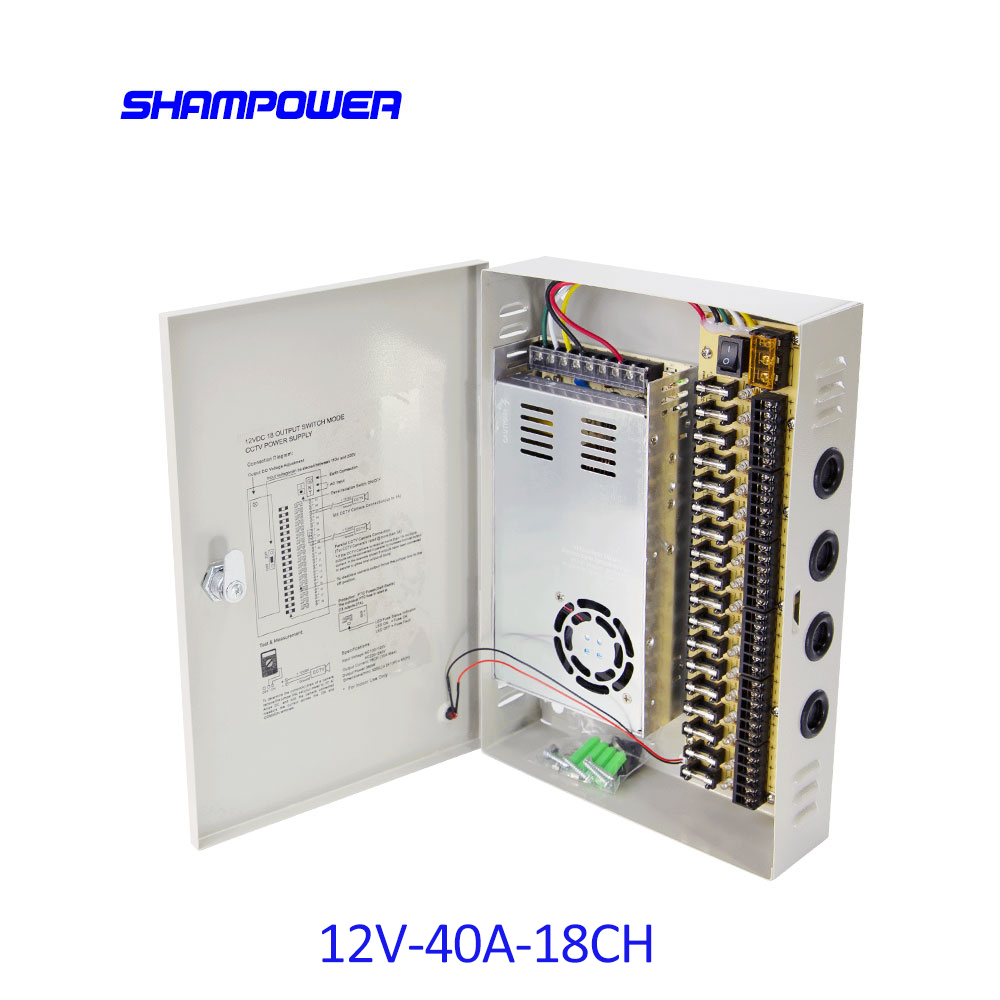

40A@12VDC with enclosure


18 Channel CCTV Power Supply Features:

1) Fully enclosed enclosure with a lock to prevent insects, dust and electric shock

2) Main power switch to turn on/off power to outputs

3) 10% adjustable DC output voltage

4) Each output individually PTC fused

5) Board designed with overload and short-circuit protection, including automatic shutdown and LED overload indicator

6) Over-current fuse-protected AC input

7) Individual AC input and DC output LED status indicators



18 Channel CCTV Power Supply Specifications

1) Input Voltage: 110~240VAC

2) Output Voltage: 12VDC selectable via DIP switch

3) Adjustable Output: 11~15@12VDC setting via VR switch

4) No. of Outputs: 18 channels

5) Supply Current: 10A@12VDC / 15A@12VDC / 20A@12VDC / 30A@12VDC / 40A@12VDC

6) AC Input Fuse Rating: 3.15A ( glass fuse )

7) LED Status Indicator: AC input ( Green ), DC Output ( Red )


Dimensions:  12.48" x 8.27" x 2.17" 10A & 15A

   12.48" x 8.66" x 2.48" 20A-B & 30A & 40A

Gross weight: 10A-1.7kg

    15A-1.8kg

    20A-1.9kg

    30A-2.2kg

    40A-2.4kg

Quantity/carton: 12 pcs/ctn 10A & 15A & 20A-B & 30A & 40A


18 Channel CCTV Power Supply Applications:

1) CCTV Security Surveillance Camera

2) Industrial control system

3) Electronic instruments, equipment, or apparatus

4) LED strip lighting

5) LED interior lighting
