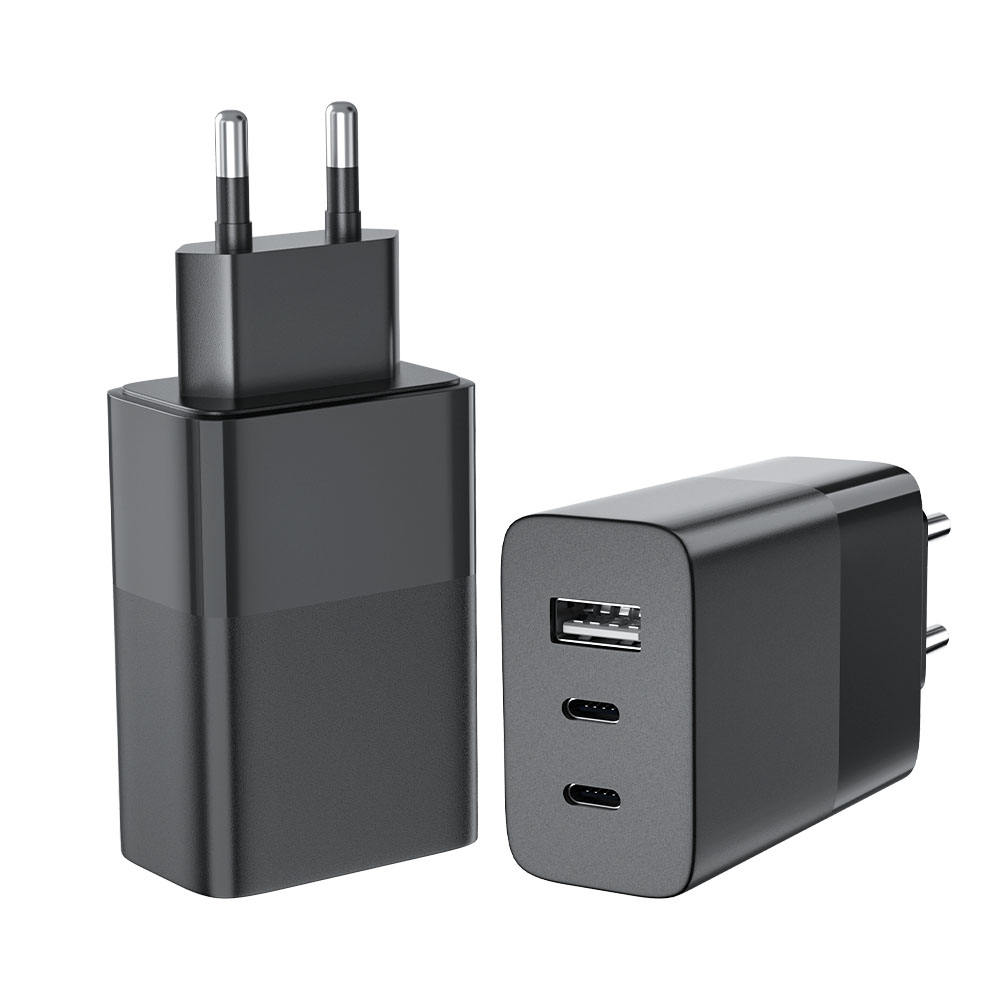

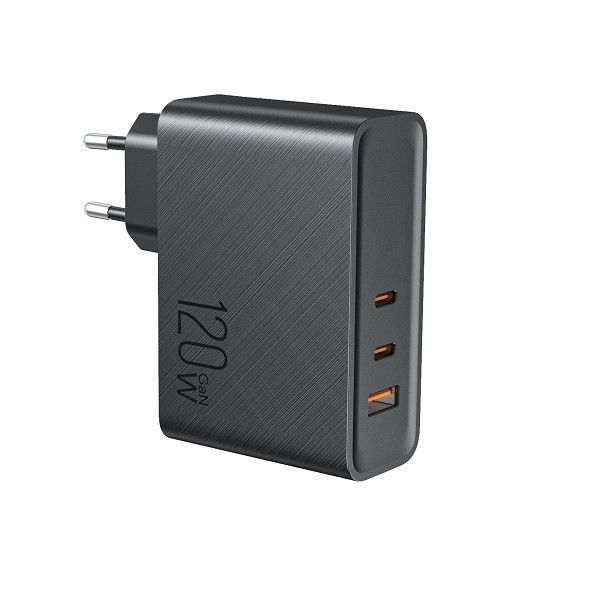

GaN Charger Series

The GaN charger Series uses the third-generation new semiconductor material gallium nitride GaN, it has the characteristics of high withstand voltage, high frequency, stable performance, etc., higher thermal conductivity and charging efficiency, faster charging speed, lower heat generation, and smaller product size.

The GaN charger Series adopts the input range from 85VAC to 264VAC. An efficiency of up to 90% and an extremely low no-load power consumption below 0.15W allows the GaN charger Series to save energy when it is either in the operating mode or the standby mode.

The entire GaN charger Series utilizes the 94V-0 flame-retardant plastic case, providing double insulation that effectively prevents electrical shock.

The GaN charger Series equipped with an EU/US/UK/AU/JP/KR jack plug is suitable for laptops, tablets, mobile phones, charging treasures, and other products.

Built-in PWM chip allows the GaN charger Series to meet the simultaneous charging needs of multiple devices so that your devices can be fully charged quickly.

Available Outputs Power: 30W / 35W / 45W / 65W / 100W / 188W



The GaN Charger Series Features:

1) 110-220VAC wide voltage input

2) EU / US / UK / AU / JPN / Kr plugs are available

3) Support QC / PD / PPS and other fast-charging protocols

4) Overvoltage, overcurrent, overload, overtemperature, overcharge, short circuit, leakage, electrostatic protection

5) Intelligent power-off protection

6) High efficiency and low consumption (standby <1W)

7) Multiple devices can be charged at the same time

8) Compatible with laptops, tablets, mobile phones, smart watches, Bluetooth headsets, drones, game consoles, etc

9) Foldable pin design saves space and is easy to carry

10) The shell's max temperature is lower than 60°C while charging

11) 100% full load burn-in test

12) UL / CE / KC / CCC / RoHS / FCC / ISO9001 are listed

133 years warranty

14) ODM & OEM supported and Fast delivery



The GaN Charger Series Specifications

DC Output



Ripple & Noise: 80MV

DC Adjustable Range: ±10% Rated Voltage

Voltage Tolerance: ±2.0%

Line Regulation: ±0.5%

Load Regulation: ±1%

Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC





AC Input







AC Voltage Range: 85-264VAC

Frequency Range: 47-63Hz

Efficiency: 90%

AC Current: 0.86/115V  0.4A / 230V

AC Inrush Current: 20A/115V   40A/230V

Leakage Current< 0.5mA / 240VAC



Protection



Over-load: 105%-150% hiccup mode, Auto-recovery

Over-voltage: 115%-135% Cut Off the Output, Auto-recovery

Over-temp.: Shut down O/P voltage, Auto-recovery



Environment





Working temp.: -10~ +60°C  (Refer to output load derating curve)

Working Humidity: 20 ~ 90% RH, non-condensing

Storage Temp.: -10~ +60°C

Storage Humidity: 10 ~ 95% RH



Safety



Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min

Safety standards: UL, CE, KC, RoHS, FCC, ISO9001, CCC



The GaN Charger Series Applications:

1) Laptops

2) Tablets

3) Mobile phones

4) Smart watches

5) Bluetooth headsets

6) Drones

7) Game consoles
