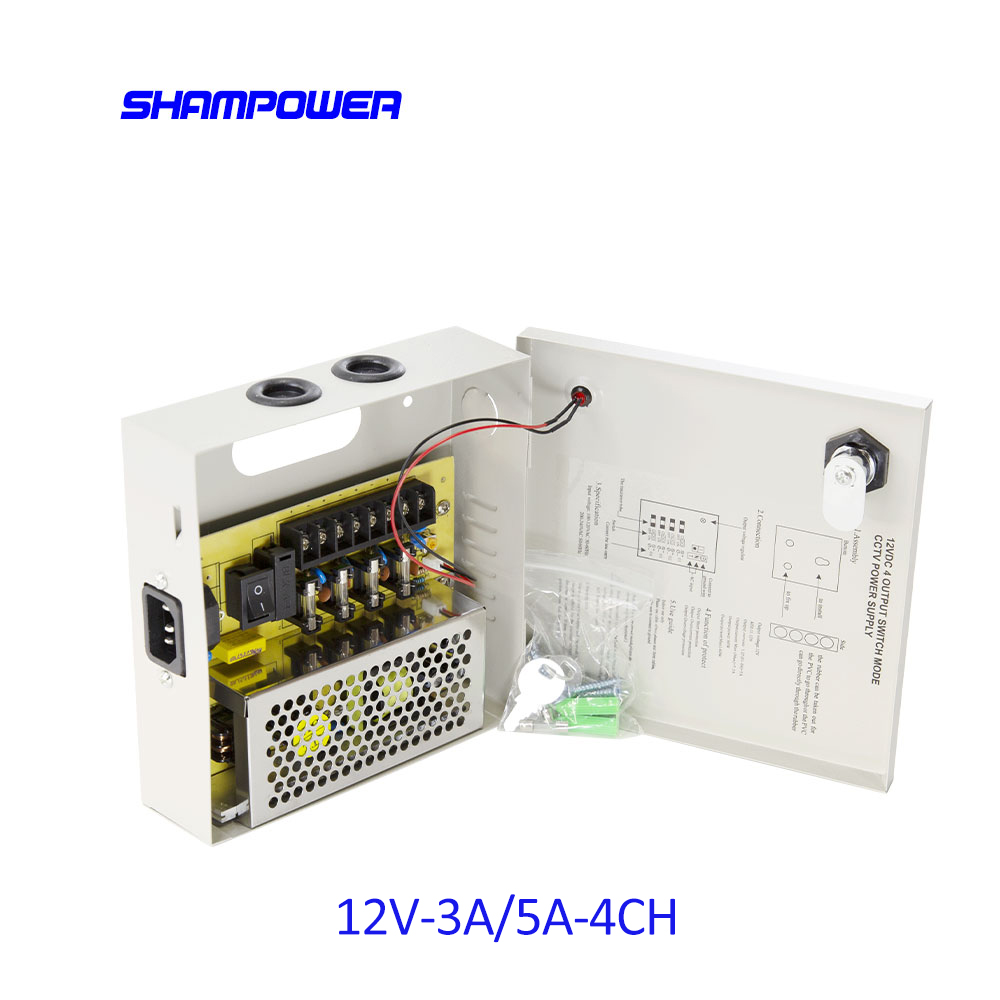

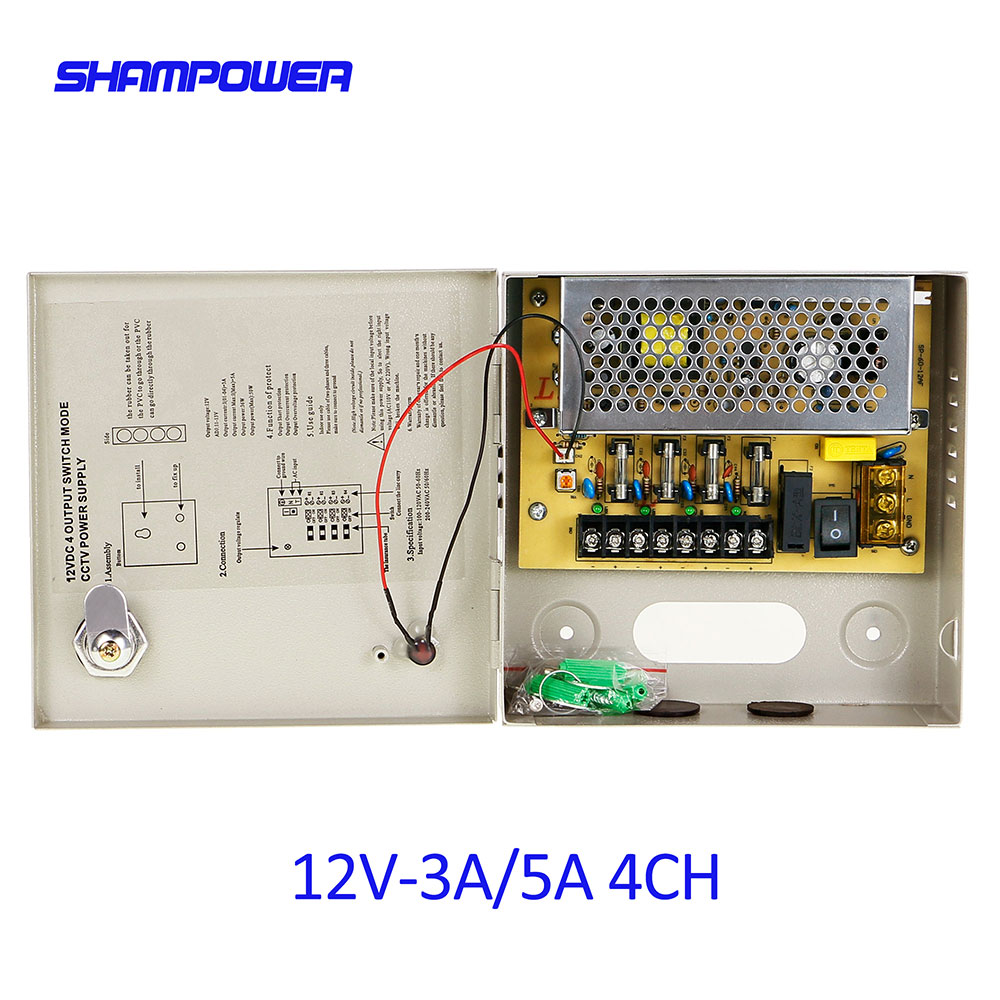

4 Channel CCTV Power Supply

4 Channel CCTV Power Supply Available Outputs:

3A@12VDC

5A@12VDC with enclosure

4 Channel CCTV Power Supply Features:

1）Fully enclosed enclosure with a lock to prevent insects, dust and electric shock

2）Main power switch to turn on/off power to outputs

3）10% adjustable DC output voltage

4）Each output individually PTC fused

5）Board designed with overload and short-circuit protection, including automatic shutdown and LED overload indicator

6）Over-current fuse-protected AC input

7）Individual AC input and DC output LED status indicators

4 Channel CCTV Power Supply Specifications：

1）Input Voltage: 110~240VAC

2）Output Voltage: 12VDC selectable via DIP switch

3）Adjustable Output: 11~15@12VDC setting via VR switch

4）No. of Outputs: 4 channels

5）Supply Current: 3A@12VDC / 5A@12VDC

6）AC Input Fuse Rating: 3.15A ( glass fuse )

7）LED Status Indicator: AC input ( Green ), DC Output ( Red )

Dimensions:    6.42" x 6.42" x 2.17"

Gross weight: 0.86kg

Quantity per carton: 32 pcs/ctn

4 Channel CCTV Power Supply Applications:

1) CCTV Security Surveillance Camera

2) Industrial control system

3) Electronic instruments, equipment, or apparatus

4) LED strip lighting

5) LED interior lighting
