9 Channel CCTV Power Supply

The SHAMPOWER 9 Fused Outputs CCTV Power Supply Box converts the 115VAC/60Hz or 230VAC/50Hz input into nine independently controlled 12VDC Fail-safe and/or Fail-secure outputs.

9 Channel CCTV Power Supply Available Outputs:

5A@12VDC

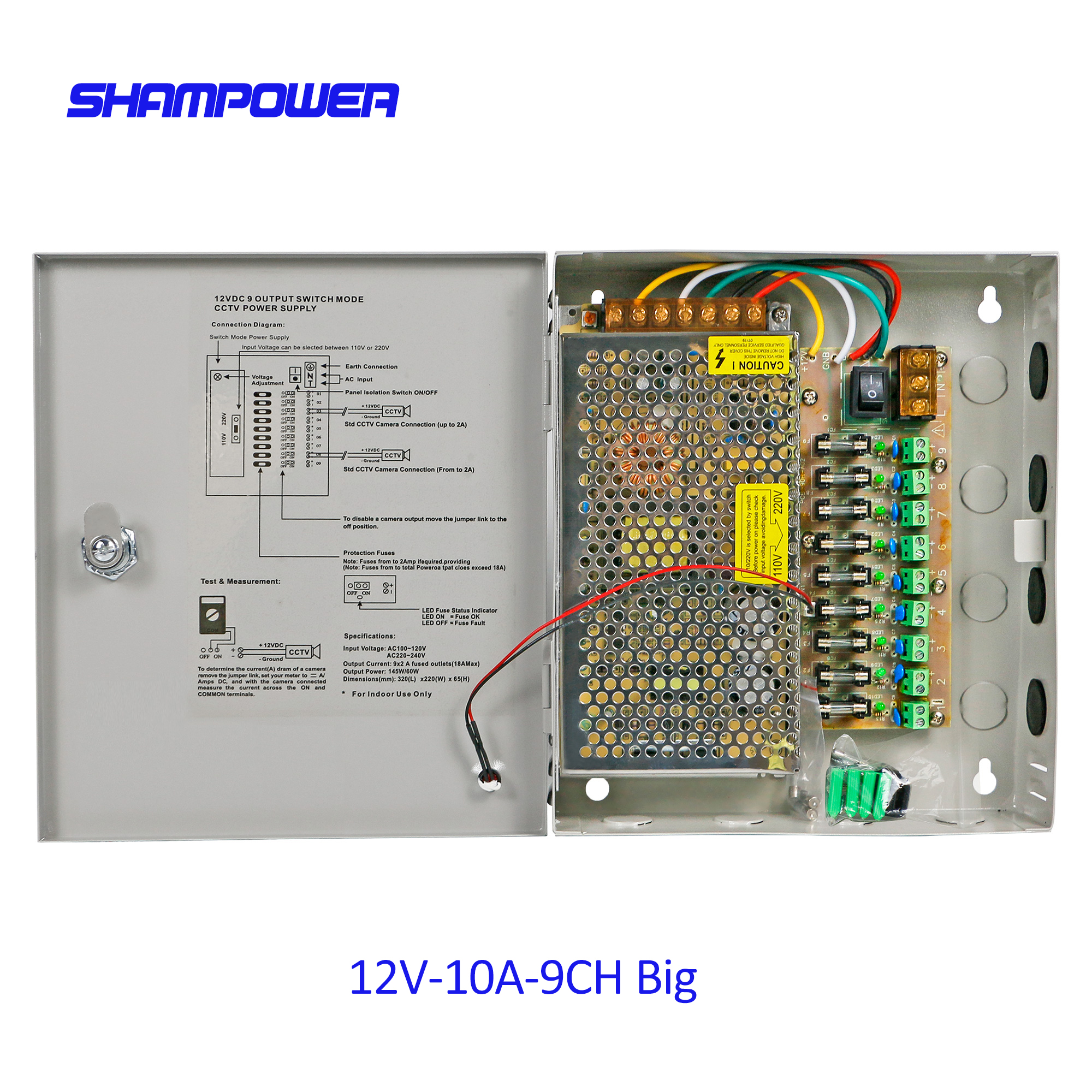

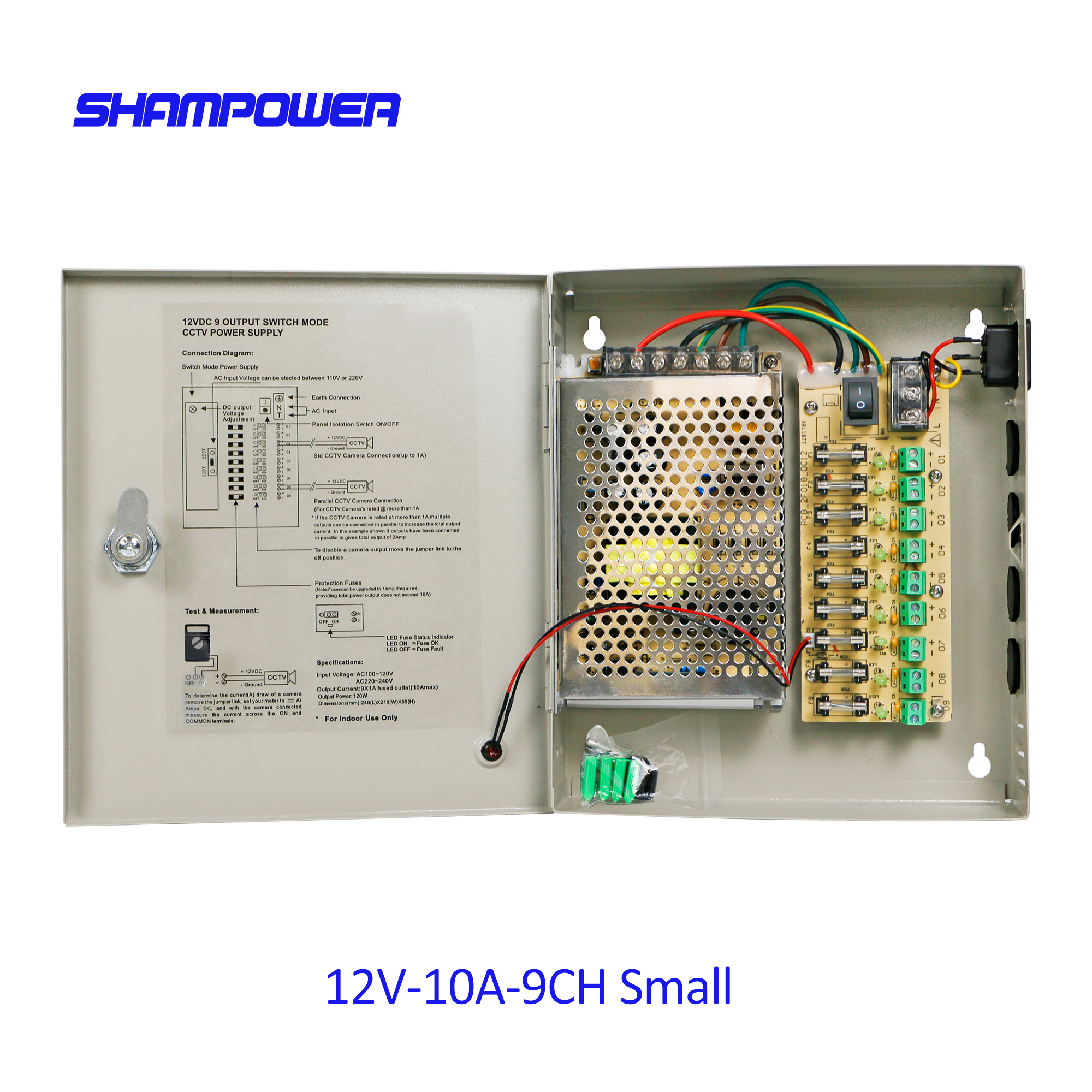

10A@12VDC

15A@12VDC

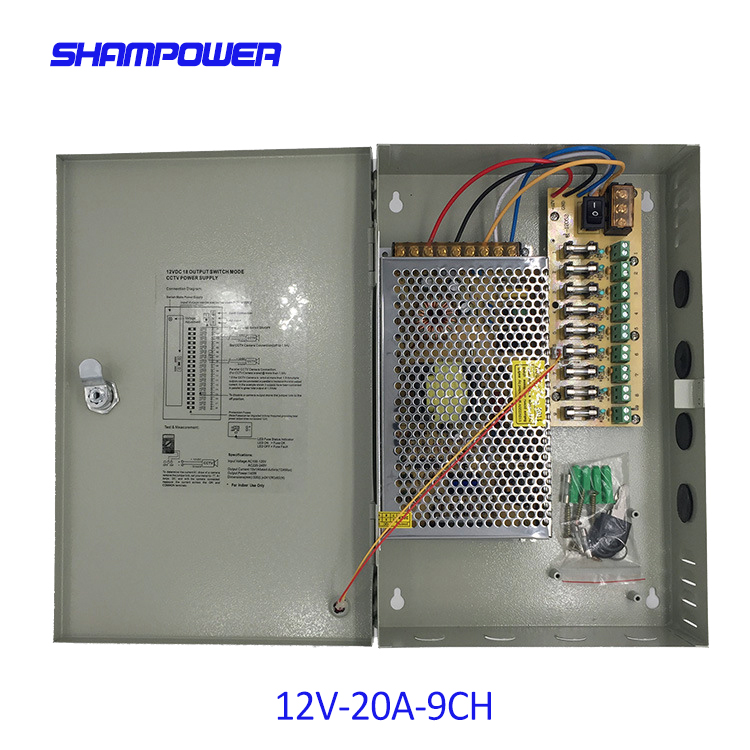

20A@12VDC

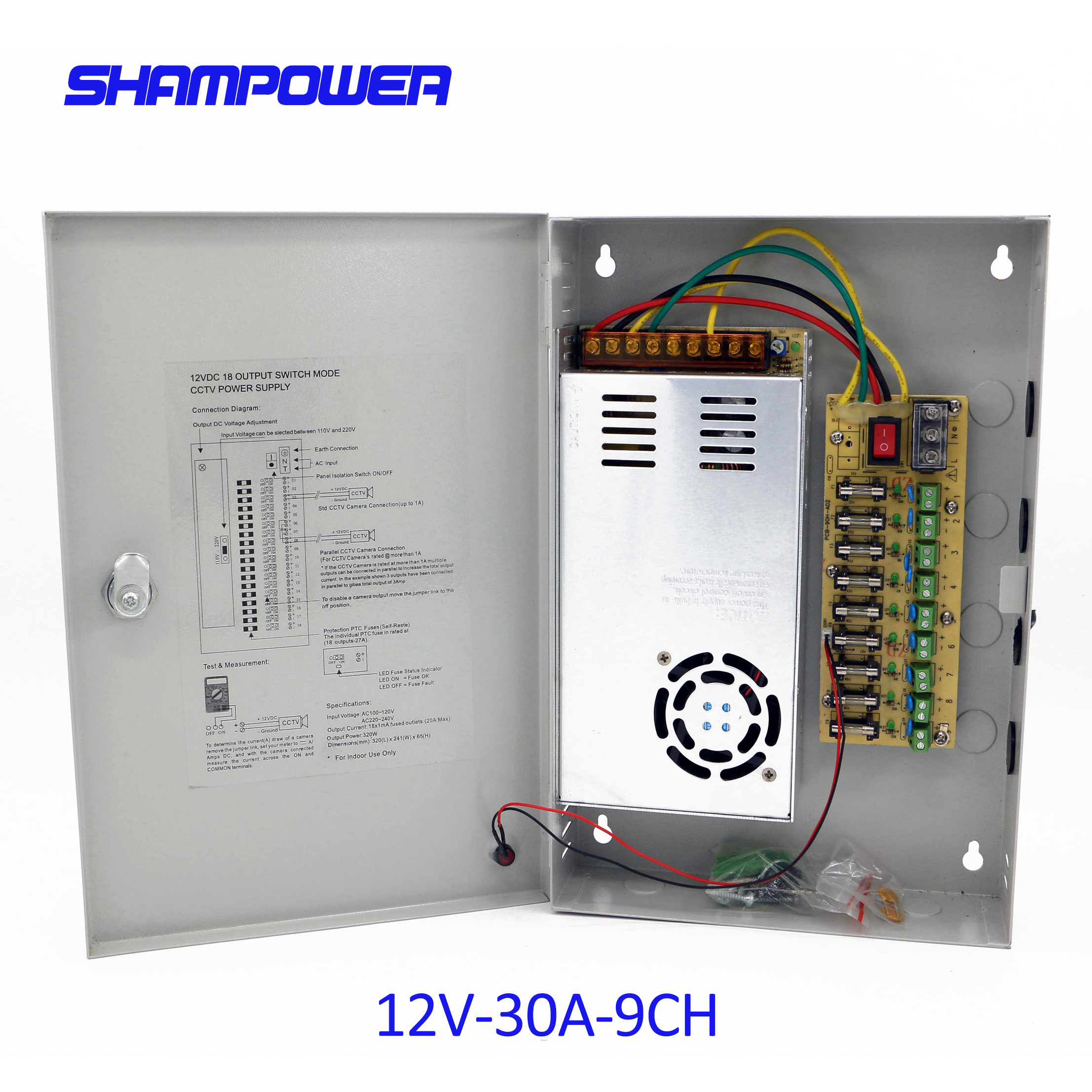

30A@12VDC with enclosure


9 Channel CCTV Power Supply Features:

1) Fully enclosed enclosure with a lock to prevent insects, dust, and electric shock

2) Main power switch to turn on/off power to outputs

3) 10% adjustable of DC output voltage

4) Each output individually PTC fused

5) Board designed with overload and short-circuit protection, including automatic shutdown and LED overload indicator

6) Over-current fuse-protected AC input

7) Individual AC input and DC output LED status indicators


9 Channel CCTV Power Supply Specifications:

1) Input Voltage: 110~240VAC

2) Output Voltage: 12VDC selectable via DIP switch

3) Adjustable Output: 11~15@12VDC setting via VR switch

4) No. of Outputs: 9 channels

5) Supply Current: 5A / 10A / 15A / 20A / 30A

6) AC Input Fuse Rating: 3.15A ( glass fuse )

7) LED Status Indicator: AC input ( Green ), DC Output ( Red )


Dimensions: 8.07" x 9.25" x 2.17" 5A & 10A-S

     12.48" x 8.27" x 2.17" 10A-B & 15A

     12.48" x 8.66" x 2.56" 20A & 30A

Gross weight: 5A & 10A-S 1.5kg

    10A-B 1.7kg

    15A-1.8kg

    20A-1.9kg

    30A-2.2kg

Quantity/carton:    16 pcs/ctn 5A & 10A-Small & 10A-Big & 15A

   12 pcs/ctn 20A & 30A


9 Channel CCTV Power Supply Applications:

1) CCTV Security Surveillance Camera

2) Industrial control system

3) Electronic instruments, equipment, or apparatus

4) LED strip lighting

5) LED interior lighting
