12V 10A / 15A 9 Fused UPS Power Supply Box

The Shampower 9 channel UPS Power Supply Box is the AC/DC security power supply, allowing the universal input range between 90VAC to 240VAC. In addition to the primary output, there is a charger output, with a smaller rated current, providing the backup application the security access systems normally need.

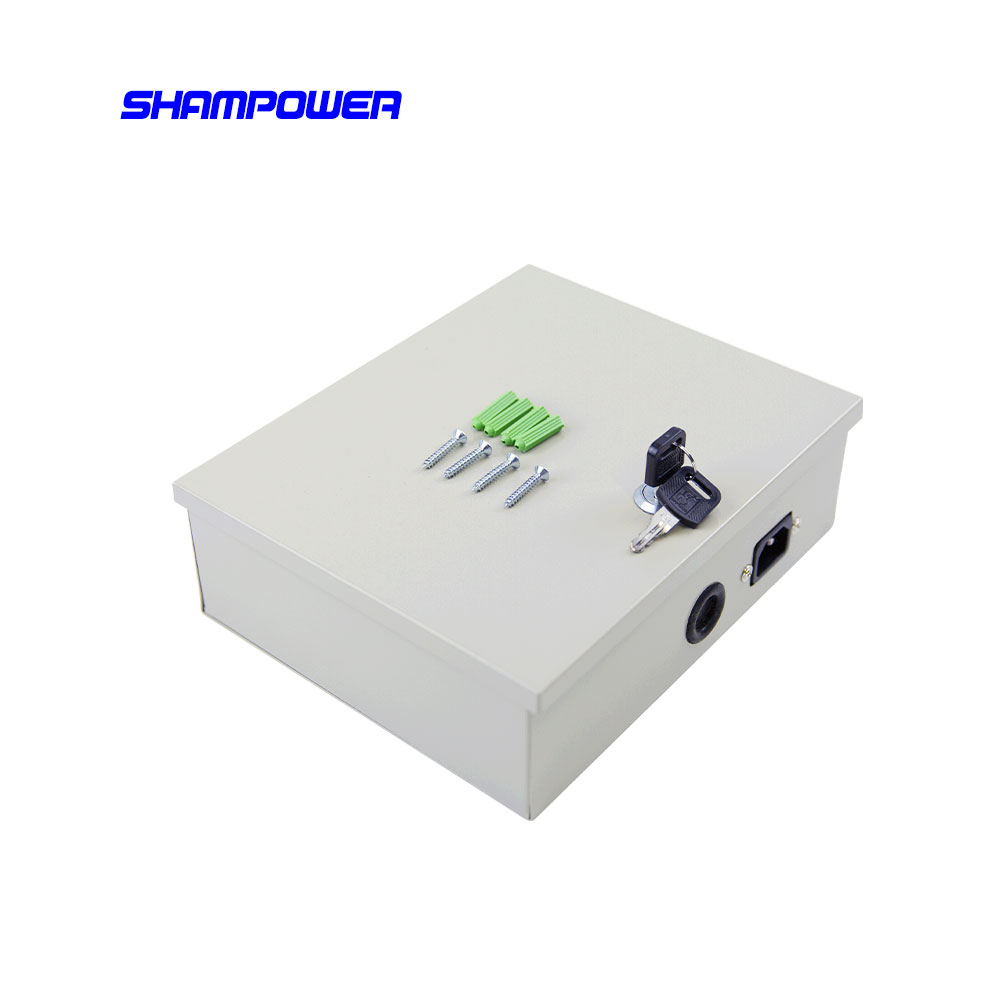

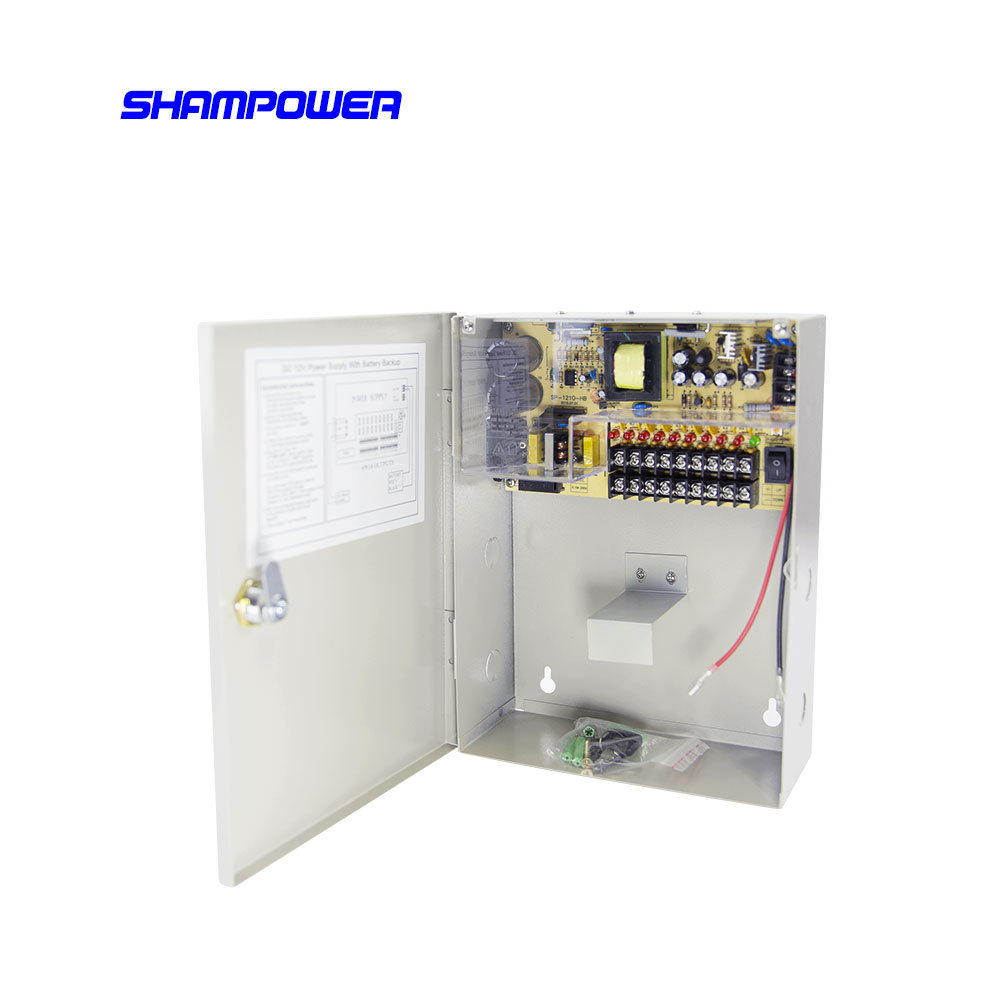

The Shampower 9 channel UPS Power Supply Box delivers efficiency of up to 86%, it can operate with air convection under -20℃~ 70℃. The 9-channel UPS Power Supply Box is designed with thorough alarm features, including AC OK and battery low signaling. Robust fault response and indication also includes gradual shutdown on output overload as well as immediate shutdown on output short, signaled by flashing red LED and with auto-recovery once output short or overload is removed. The power input and power output are enclosed in one heavy-duty, easy-to-install enclosure. As a result, a Shampower 9 channel UPS Power Supply Box can replace several separate individual power sources.

Available Outputs:

• 9 Output： 10A@12VDC, 15A@12VDC with enclosure

9 Channel UPS Power Supply Box Features:

1) 9 Outputs: 10A@12VDC, 15A@12VDC with enclosure

2) AC power failure supervision relay

3) Main power switch to turn on/off power to outputs

4) Each output individually PTC fused

5) Battery failure supervision relay

6) Selectable delay timer (5 sec., 10 sec,) for AC failure supervision relay via DIP switch

7) Board designed with overload and short-circuit protection, including automatic shutdown and LED overload indicator

8) Over-current fuse-protected AC input

9) Built-in backup battery charger (12V 7ah backup battery is optional)

10) Automatically switch to backup battery if AC fails

11) Individual AC input and DC output LED status indicators

12) Alarm signal for AC OK and Battery low

13) Battery low protection / Battery reverse polarity protection by fuse

14) Universal AC input / Full range

9 Channel UPS Power Supply Box Specifications:

1) Input Voltage: 110~240VAC

2) Output Voltage: 12VDC selectable via DIP switch

3) Adjustable Output: 11~15 @ 12VDC setting via VR switch

4) No. of Outputs: 9 channels

5) Supply Current: 10A@12VDC / 15A@12VDC

6) AC Input Fuse Rating: 3.15A ( glass fuse )

7) LED Status Indicator: AC input ( Green ), DC Output ( Red )

8) AC-Fail Relay Delay Timer: Selectable @ 5sec or 10sec via DIP switch

Dimensions: 11.2" x 8.3" x 3.7"

Gross weight: 1.6kg

Quantity per carton: 12 pcs/ctn

9 Channel UPS Power Supply Box Applications:

1) Security system

2) Emergency lighting system

3) Alarm system

4) UPS system

5) Central monitoring system

6) Access system
