Modified Sine Wave Inverter

The Modified Sine Wave Inverter is a highly reliable off-grid pure sine wave DC-AC power inverter, which can transfer DC power from battery to AC power.

The key features of the Modified Sine Wave Inverter include digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high-quality fan with low noise, adjustable AC output voltage, and frequency, -25~ + 70°C wide operating temperature range, complete protection features, and etc.

Combined with battery, the Modified Sine Wave Inverter is suitable for use in residential, commercial, marine, automobile, mine, construction sites, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tools, communication equipment, power distribution cabinet, outdoor camping equipment, marine-AC power, factory equipment and etc.

Available Outputs:

• 150W, 300W, 600W, 1000W, 1500W, 2000W, 3000W

Modified Sine Wave Inverter Features：

1) Modified sine wave output ( THD<3% )

2) 12V or 24V DC input

3) Power ON-OFF Switch

4) Input voltage range: -15% ~ +25%

5) Output voltage regulation: ±10%

6) Protections: Output short / Input polarity reverse / Overload / Over Voltage / Over temp

7) -25~ + 70°C wide operating temperature

8) Temperature-controlled Cooling fan

9) Front panel indicator for operation status

10) No load dissipation <1.7W at standby saving mode

11) CE & RoHS & FCC & ISO9001 listed

12) LED/LCD display & Remote control is optional

13) Two years warranty

Modified Sine Wave Inverter Specifications

Modified Sine Wave Inverter
Model	M150	M300	MC300	M600	M1000	M1500	M2000	M3000
Rated Power	150W	300W	300W	600W	1000W	1500W	2000W	3000W
Peak Power	300W	600W	600W	1200W	2000W	3000W	4000W	6000W
Output waveform	Modified Sine Wave
Input Voltage	DC 12V or 24V		DC 12V or 24V or 48V
Output	AC 110-120V or 220-240V 50/60Hz ± 1
USB port	5V, 2.1A
Efficiency	≥90 %
Low Voltage Alarm	10.5±0.5V / 21±0.5V / 42±1V
Low Voltage Shut	9.5±0.5V / 19±0.5V / 38±1V
Over Voltage Shut	15.5±0.5V / 31±0.5V / 61±1V
Low Voltage Recover	13±0.5V / 24±0.5V / 48±1V
Over Voltage Recover	14V±0.2V / 28V±0.5V / 54V±1V
Other Protections	Over-Temperature Protection, Short Circuit Protection, Reverse Polarity Protection
Working Temperature	-25~ + 70°C
Other Protections	Short Circuit Protection, Reverse Polarity Protection
Certification	CE, RoHS, FCC

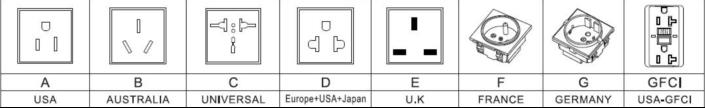

Optional Sockets

Modified Sine Wave Inverter Applications:

1) Mobile devices

2) Portable equipment

3) Home and office application

4) Vehicle

5) Yacht

6) Telecom or Datacom system

7) Off-grid solar power system

8) Outdoor camping equipment
